 Synthetic CVT Fluid


Product Code: CVT

CVTs require a unique transmission fluid with specialized frictional characteristics designed to ensure the belt or chain remains in contact with the pulleys without slipping. AMSOIL Synthetic CVT Fluid provides outstanding metal-to-metal frictional properties and excellent protection and performance for CVTs throughout vehicle manufacturer-recommended drain intervals.
Data Sheet
MSDS
Warranty

Package sizes include:

  • Quart Bottle
  • 2.5-Gallon Bottle
  • 55-Gallon Drum

Continuously variable transmissions (CVTs) create unlimited gear ratios using a belt or chain running between two variable diameter pulleys. CVTs require a unique transmission fluid with specialized frictional characteristics designed to ensure the belt or chain remains in contact with the pulleys without slipping. AMSOIL Synthetic CVT Fluid provides outstanding metal-to-metal frictional properties and excellent protection and performance for CVTs throughout vehicle manufacturer-recommended drain intervals. It is Warranty Secure and will not void your vehicle’s warranty. AMSOIL Synthetic CVT Fluid is a cost-effective, high-performance alternative to original equipment manufacturer (OEM)


Excellent Frictional Properties

The metal-to-metal frictional properties between the CVT's belt/chain interface and the pulleys are important, relying on the CVT fluid to prevent slipping. AMSOIL Synthetic CVT Fluid provides exceptional metal-to-metal frictional properties to help prevent belt and chain slipping and help extend transmission life.


Outstanding Wear Protection

AMSOIL Synthetic CVT Fluid is durable. In normal and severe service, it effectively resists wear to the transmission's vital parts, helping achieve long life.


Resists Heat

In elevated heat, Synthetic CVT Fluid's thermally stable formulation guards against the harmful effects of thermal breakdown. It resists the formation of varnish that can threaten transmission performance and life.


Superior Wet-Clutch Performance

AMSOIL Synthetic CVT Fluid provides superior wet-clutch performance for outstanding anti-shudder durability and reduced noise, vibration and harshness.

Field Proven

Field testing was conducted to compare AMSOIL Synthetic CVT Fluid and Nissan NS-2 CVT Fluid. Four vehicles (two equipped with AMSOIL CVT Fluid and two with Nissan NS-2 CVT Fluid) were driven 100,000 miles before the transmissions were torn down and inspected.

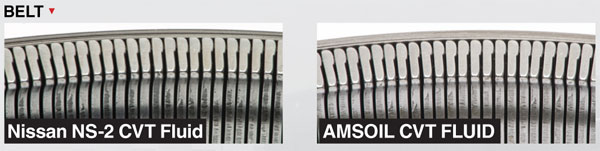

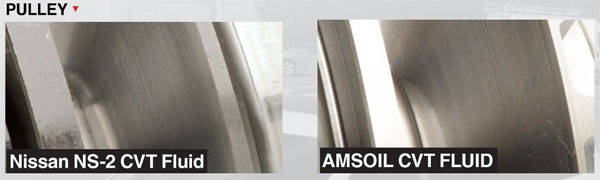

As indicated by the lack of wear in the belt and pulley photos below, AMSOIL CVT Fluid provided outstanding protection throughout the duration of the field trial, proving it is a high-quality replacement for Nissan NS-2 CVT Fluid.



Lab Tested

AMSOIL lab testing also reveals AMSOIL CVT Fluid met, and in some cases surpassed, the protection and performance of Nissan NS-2 CVT Fluid:

  • In FZG wear testing (ASTM D5182), Nissan NS-2 achieved a 7 stage pass, while AMSOIL CVT Fluid significantly surpassed it with an 11 stage pass.
  • In the JASO LVFA Anti-Shudder Durability Test, AMSOIL CVT Fluid lasted six times longer, translating into improved anti-shudder durability and reduced noise, vibration and harshness.

Product Applications

AMSOIL Synthetic CVT Fluid is recommended for belt- and chain-type continuously variable transmissions requiring the following:

  • Audi/Volkswagen TL 52180, G 052 180
  • Dodge/Jeep CVTF+4®, NS-2
  • Ford CVT23, CVT30, MERCON® C
  • GM/Saturn DEX-CVT
  • Honda HMMF, HCF-2
  • Hyundai Genuine CVTF, SP-III
  • Kia SP-III
  • Mercedes-Benz 236.20
  • Mini Cooper EZL 799
  • Mitsubishi CVTF-J1, SP-III
  • Nissan NS-2
  • Subaru Lineartronic® CVTF (P/N K0425Y0710), NS-2
  • Suzuki TC, CVT Green 1, NS-2
  • Toyota TC

Not for use in eCVTs


Service Life

AMSOIL Synthetic CVT Fluid should be changed according to your vehicle manufacturer’s recommendations.
