Ford 7.3L PowerStroke Oil Bypass Unit


Product Code: BMK26

For Ford 7.3L PowerStroke applications. Includes both filters and spin-on adapter. The Ea By-Pass Oil Filter (EaBP) provides the best possible filtration protection against wear and oil degradation. Working in conjunction with the engine's full-flow oil filter, the AMSOIL Ea By-Pass Filter operates by filtering oil on a "partial-flow" basis. It draws approximately 10 percent of the oil pump's capacity at any one time and traps the extremely small, wear-causing contaminants that full-flow filters can't remove. The AMSOIL Ea Bypass Filter typically filters all the oil in the system several times an hour, so the engine continuously receives analytically clean oil

Data Sheet
Warranty

Typical Installation Diagram for BMK26 Kit.

Click on diagram for larger image

 (Opens a new browser window)

BMK26 Installation and Servicing Instructions

See the By-Pass Replacement Parts Lists

AMSOIL By-Pass Filter Replacement Chart

By-pass installations

By-Pass Filtration System Application Guide

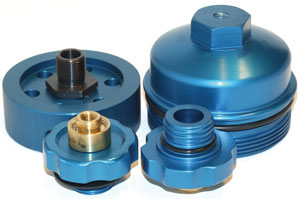

New Aluminum Billet Oil Fill and Oil Filter Caps for BMK21 By-Pass Filtration System

AMSOIL offers by-pass components (sold separately) to ease the installation of the BMK21 By-Pass Filtration System in three popular diesel engines: the Ford 6.0L Power Stroke, the Dodge 5.9L Cummins and the General Motors 6.6L Duramax.

Engine compartments are becoming increasingly cramped, leaving little room for after-market additions and improvements. The BMK21 is a single remote by-pass filter system that fits into much smaller spaces than the AMSOIL Dual-Remote By-Pass System.

Ford 6.0L/6.4L Power Stroke Diesels

To ease installation of the BMK21 on 2003 and later model Ford pickups equipped with the 6.0L and 6.4L PowerStroke diesel engines, AMSOIL offers the new Aluminum Billet Oil Filter Cap (BK1101), the Aluminum Billet Oil Fill Cap (BK1102) and the 90-degree JIC Elbow (BP242, two recommended) (all sold separately). These new high-quality billet aluminum caps replace the original equipment manufacturer (OEM) filter cap and oil fill cap. Thenew caps have holes tapped in them that accept the JIC elbows for hose connectors.

Dodge 5.9L/6.7L Cummins Diesels

To ease installation of the BMK21 in later model Dodge pickups equipped with the 5.9L and 6.7L Cummins diesel engine, AMSOIL offers the 1/8" NPT - 1/4" JIC fitting (BP241), the Aluminum Billet Oil Fill Cap for 2004-current Dodge 5.9L Cummins diesels (BK1303), for 6.7L Cummins engines use (BK1303), and the 90-degree JIC Elbow (BP242) (all sold separately). The BP241 fits onto the existing plug on top of the OEM full-flow filter mount, and the addition of the BK1303 eases the installation of the oil return line.

General Motors 6.6L Duramax Diesels

To provide GM Duramax owners the same ease of installing the BMK21, AMSOIL is now offering an oil filter "Sandwich" adapter (BK1201).

The Sandwich adapter is an anodized billet aluminum adapter that screws on to the present full flow oil filter nipple located on the engine block. The full flow filter is then simply spun on to the adapter. The Sandwich adapter has an orifice to provide high-pressure oil feed for the BMK21. Like the other diesel applications, AMSOIL now offers an Aluminum Billet Oil Filler Cap for (BK1202) to ease the installation of the oil flow from the BMK11 back to the engine. To complete an installation, the following components must be purchased separately:

1. Aluminum oil filter Sandwich Adapter with o-ring (BK1201)

2. Aluminum Billet Oil Filler Cap for GM Duramax (BK1202)

3. Two 90 degree JIC Elbows (BP242)

4. Single Remote By-pass system (BMK21)

5. By-pass filter (EaBP90, EaBP100, or EaBP110, as space dictates) (all sold separately)


Higher Efficiency

AMSOIL EaBP Filters have an efficiency of 98.7 percent at two microns. At normal operating RPMs the EaBP Filter will filter all of the oil in a typical five quart sump in less than 10 minutes.


Superior Construction

The superior construction of AMSOIL EaBP Filters provides better sealing and increased longevity along with superior corrosion resistance. AMSOIL EaBP Filters have a marine powder coated exterior; and their zinc-dichromate base plates increase rust protection. EaBP Filters have a nitrile HNBR gasket and an orange silicone anti-drain valve. The two stage pleated and layered cellulose/full synthetic media has an efficiency rating of 98.7 percent at two microns.


Longer Lasting

When used in conjunction with AMSOIL motor oil and an AMSOIL EaO or Donaldson Endurance filter, the EaBP90, 100 and 110 Filters should be changed every other full-flow filter change up to 60,000 miles or one year whichever comes first. When used with other brands of motor oil or full-flow filters, the EaBP Filter should be changed every other full-flow filter change. AMSOIL recommends using oil analysis when extending oil drain intervals.



AMSOIL recommends changing the EaBP120 every other full-flow filter change up to 90,000 miles or one year whichever comes first. Extended oil drain intervals should always be accompanied by an oil analysis program.


Increased Oil Capacity

The increased fluid system capacity and filtration life provides improved oil cooling and ensures that equipment constantly runs on clean oil. Engine efficiency is increased, providing extended engine life.


Soot Removal

AMSOIL has designed a high-efficiency by-pass filter element that is also a soot removal device. AMSOIL Ea By-Pass Filters use a synthetic/cellulose sandwiched media. The inner layer of the element is composed of a highly efficient cellulose media covered with a full synthetic media outer layer. These filters remove 39 percent of soot contaminants less than one micron. Soot removal efficiency increases approximately 10 to 14 percent when the EaBP Filter is used in conjunction with a standard full-flow filter.


By-Pass Filtration Benefits

  • Dramatically Extended Drain Intervals

  • Improved Oil Cooling

  • Increased Filtration Capacity and Life

  • Increased Fluid System Capacity

  • Efficient Small Particle and Soot Removal

  • Significantly Extended Engine Life

  • Equipment Constantly Runs on Clean Oil

  • Increased Engine Efficiency

  • Remove Particles Less Than One Micro


Bypass filter elements
EaBP90 Filter
EaBP100 Filter
EaBP110 Filter
